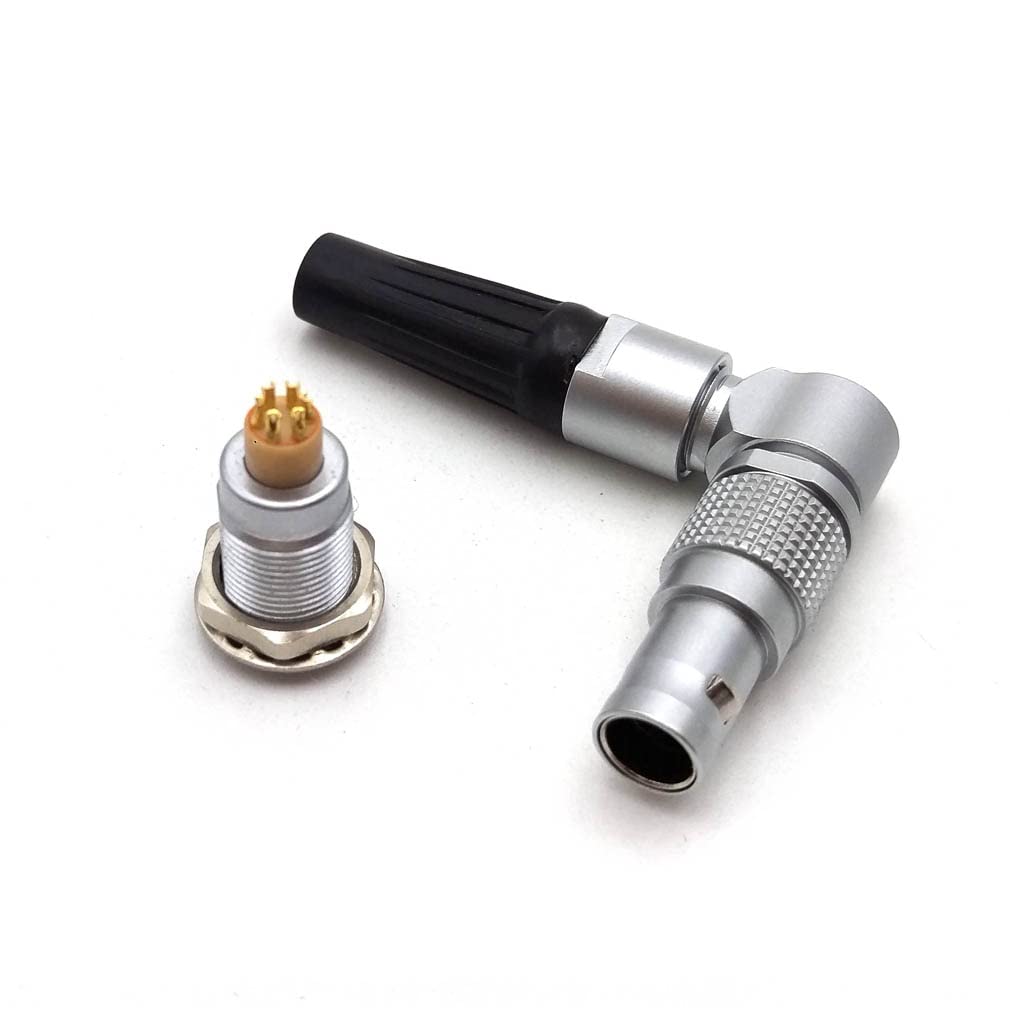

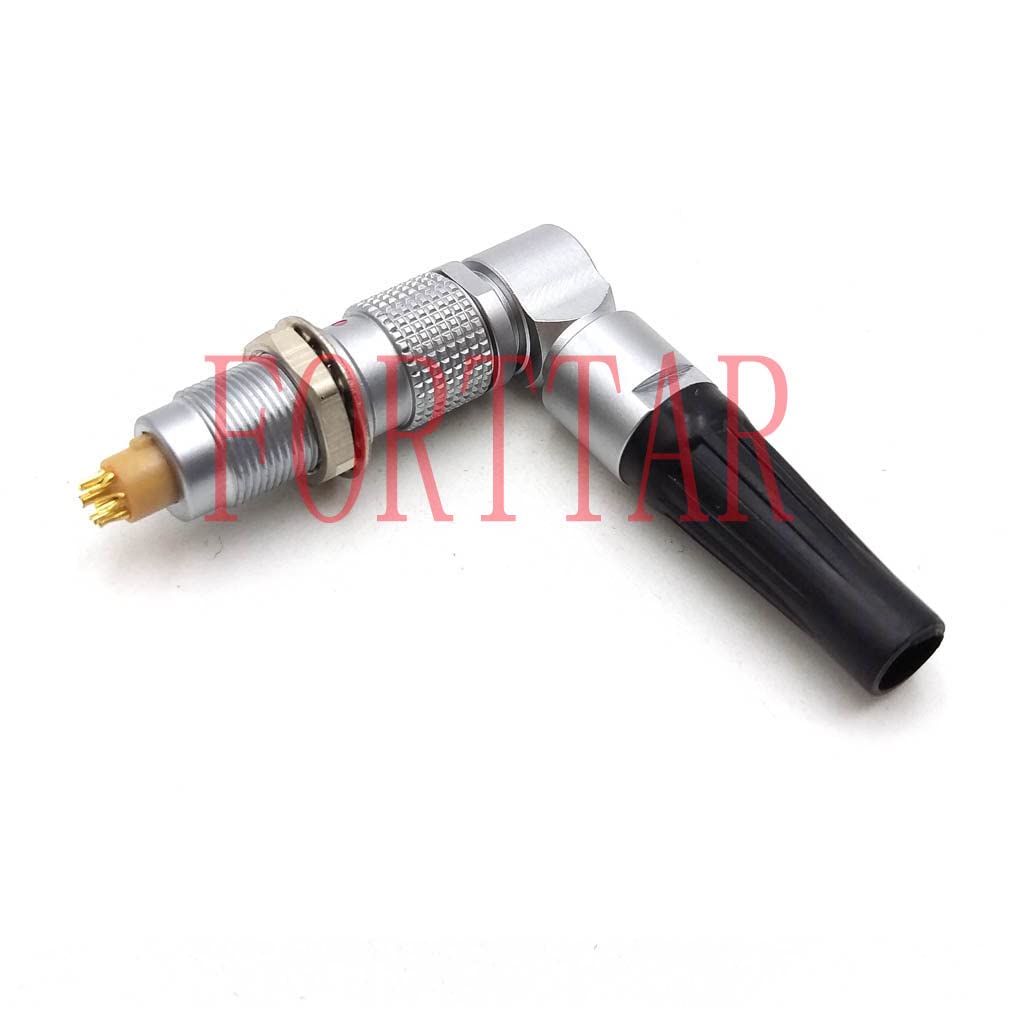

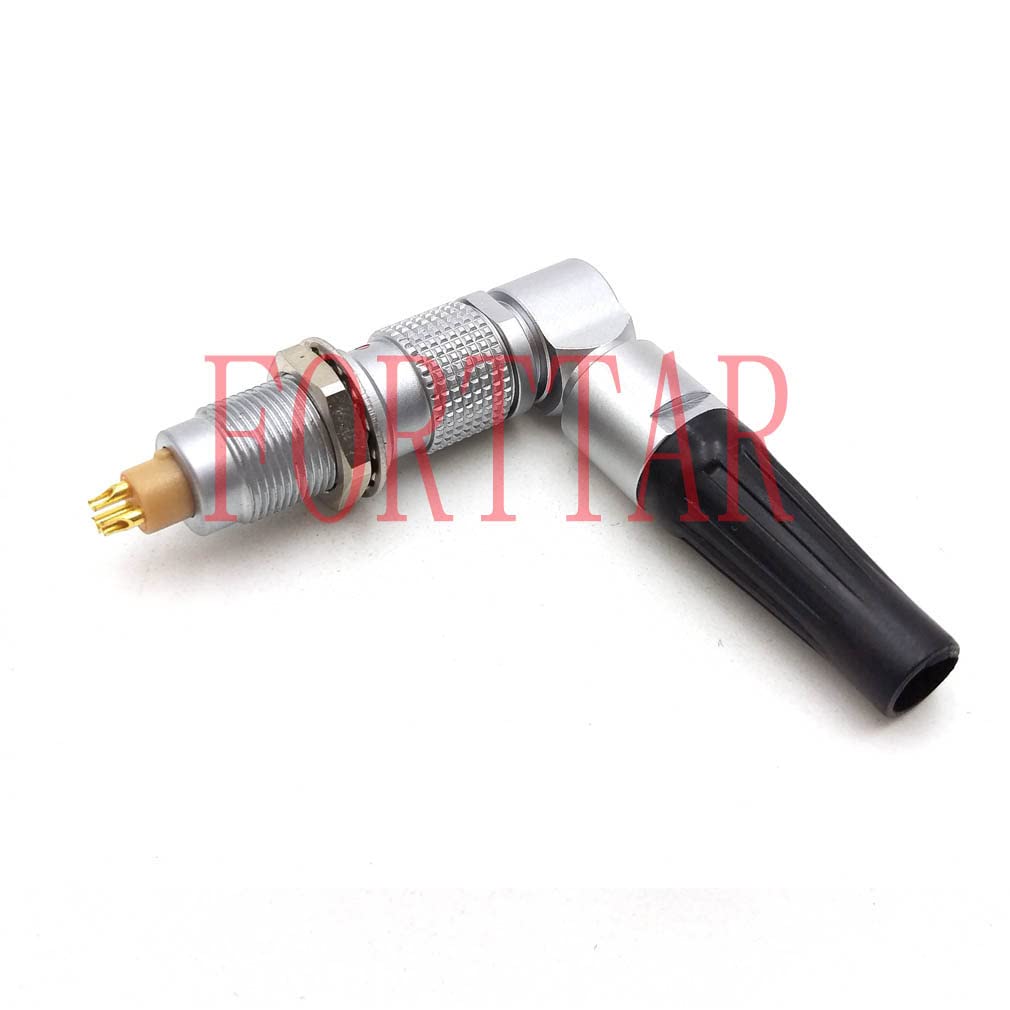

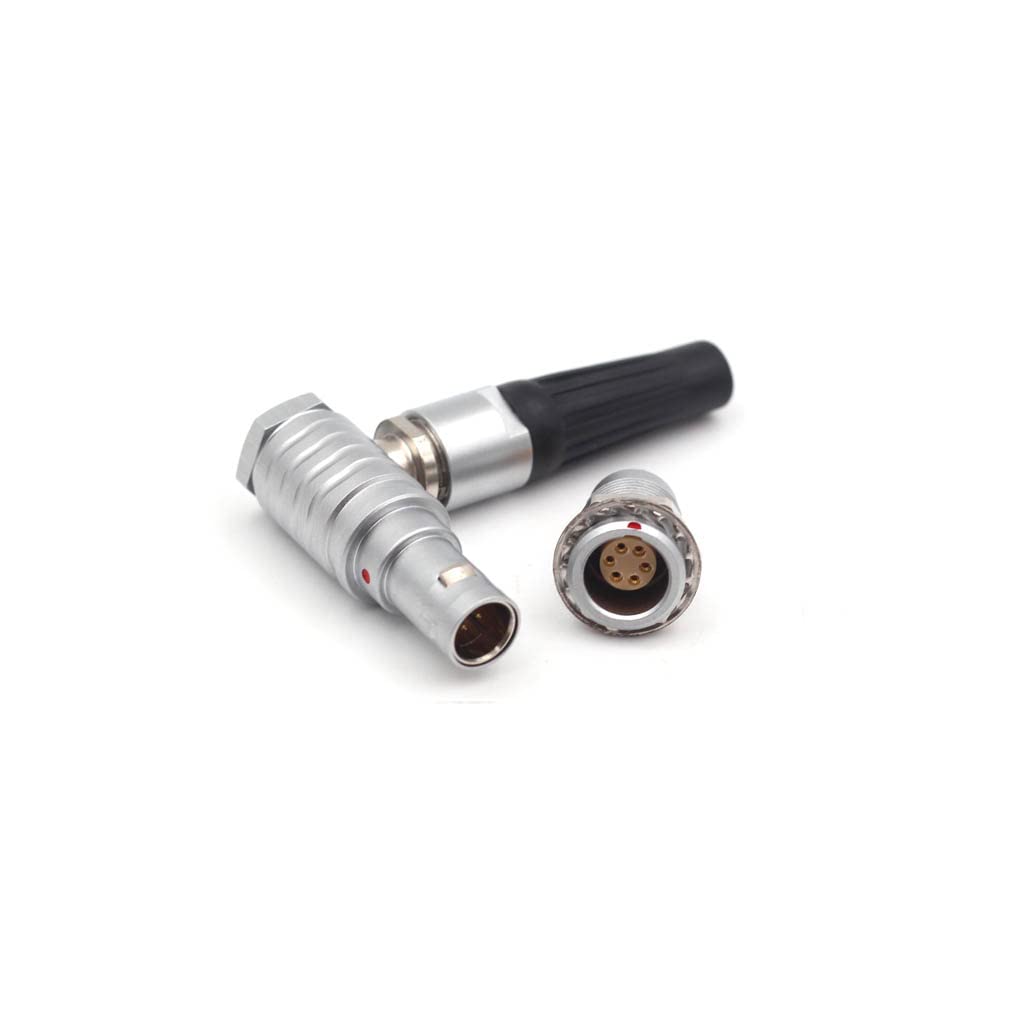

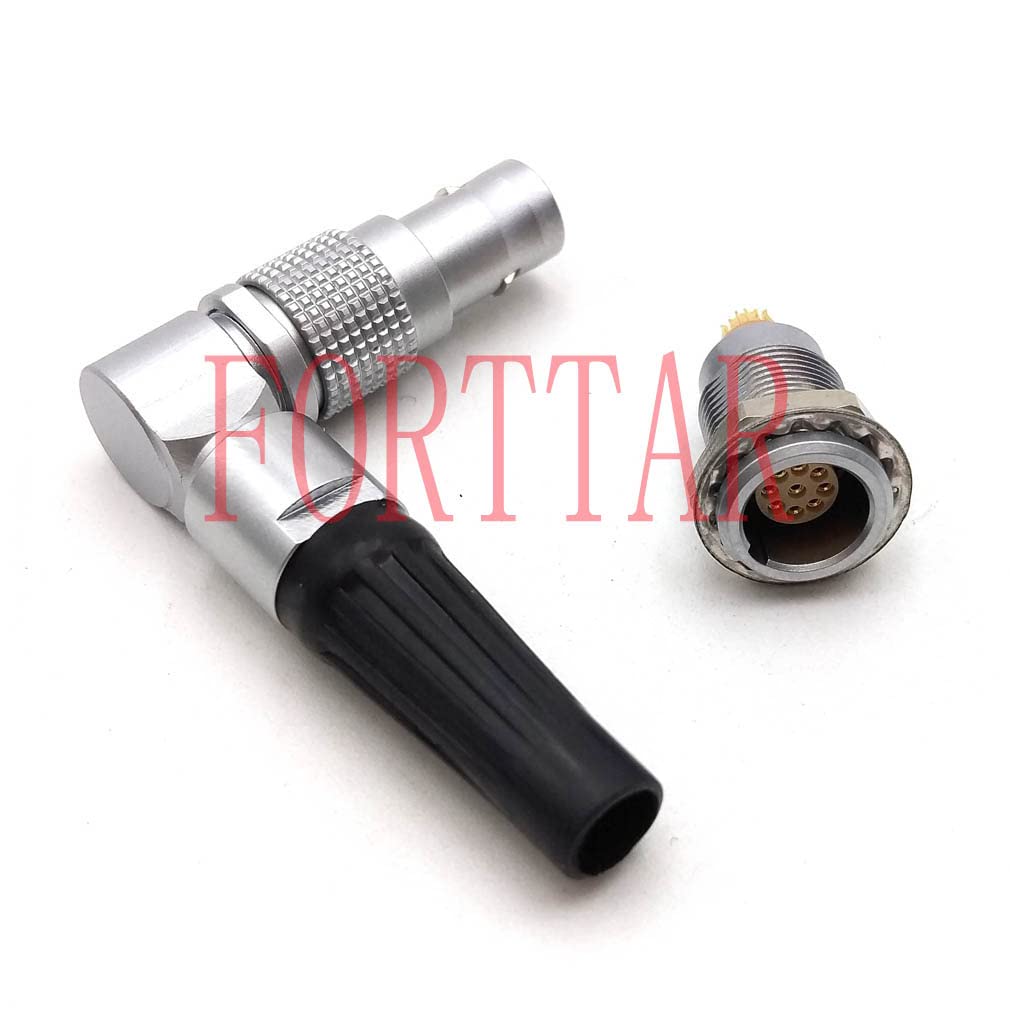

0B Rotatable 5 Pin Aviation Connector Set, 5 Wire FHG.0B.305 Egg.0B.305 Push-Pull Self-Lock Industrial Camera Electrical Power Signal Plug Socket (FHG+Egg.0B.30- (Rotatable), 5 Pin)
4.8 (43 items)
Limited Time Sale$18.90 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215628291 | Release Date | 2026/04/12 | List Price | $12.60 | Model Number | 215628291 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
0B serials push-pull self-lock aviation connector, 2 3 4 5 6 7 9 PIN Connector 2pin,3pin: Rated Current (A): 10A Contact diameter × number: Φ0.9 x 2 / Φ0.9 x 3 Rated voltage (AC.V.): 500V(2pin), 400V(3pin) Withstanding Voltage (AC.V) 1 minute: 1000V (2pin), 875V(3pin) Contact resistance: 6mΩ Wire specification: <1.5m㎡/16AWG4Pin, 5pin: Rated Current (A): 7A Contact diameter × number: Φ0.7 x 4 / Φ0.7 x 5 Rated voltage (AC.V.): 300V Withstanding Voltage (AC.V) 1 minute: 875V(4pin), 750V(5pin) Contact resistance: 7.5mΩ Wire specification: <0.785m㎡/18AWG 6pin, 7pin, 9pinn: Rated Current (A):5A (6, 7pin), 2A(9pin) Contact diameter × number: Φ0.5 x 6 / Φ0.5 x 7 / Φ0.5 x 9 Rated voltage (AC.V.): 750V(6, 7pin), 600V(9pin) Withstanding Voltage (AC.V) 1 minute: 300V(6, 7pin), 200V(9pin) Contact resistance: 5mΩ Wire specification: <0.785m㎡/18AWG 0B series Push-pull self-lock Connectors have a very simple locking mechanism: As the plug is pushed into the receptacle, locking fingers on the plug snap into the receptacle, creating a reliable connection between plug and receptacle. Pulling on the cable or the rear of plug causes the locking fingers to grab harder and a separation of plug and receptacle is almost impossible. Pulling on the outer plug housing causes the locking fingers to retract and the plug and receptacle separate easily.

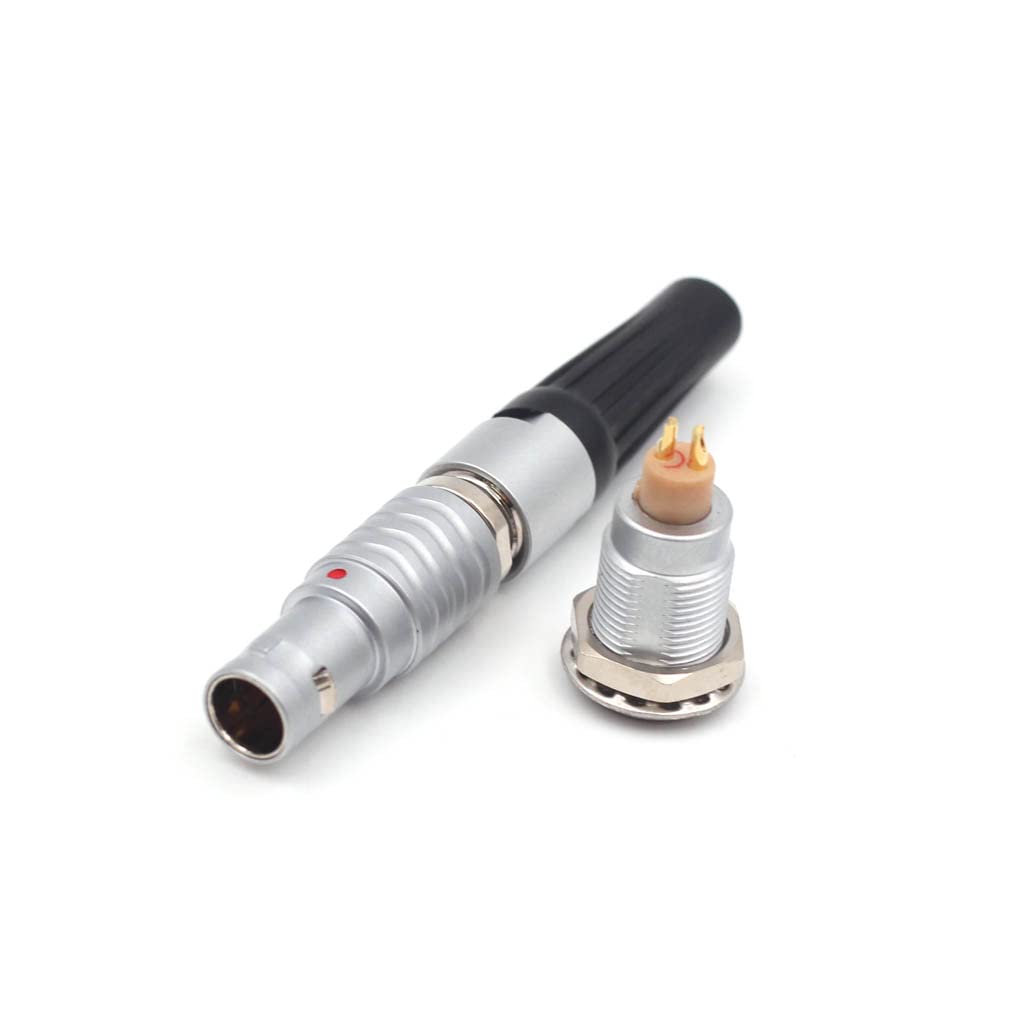

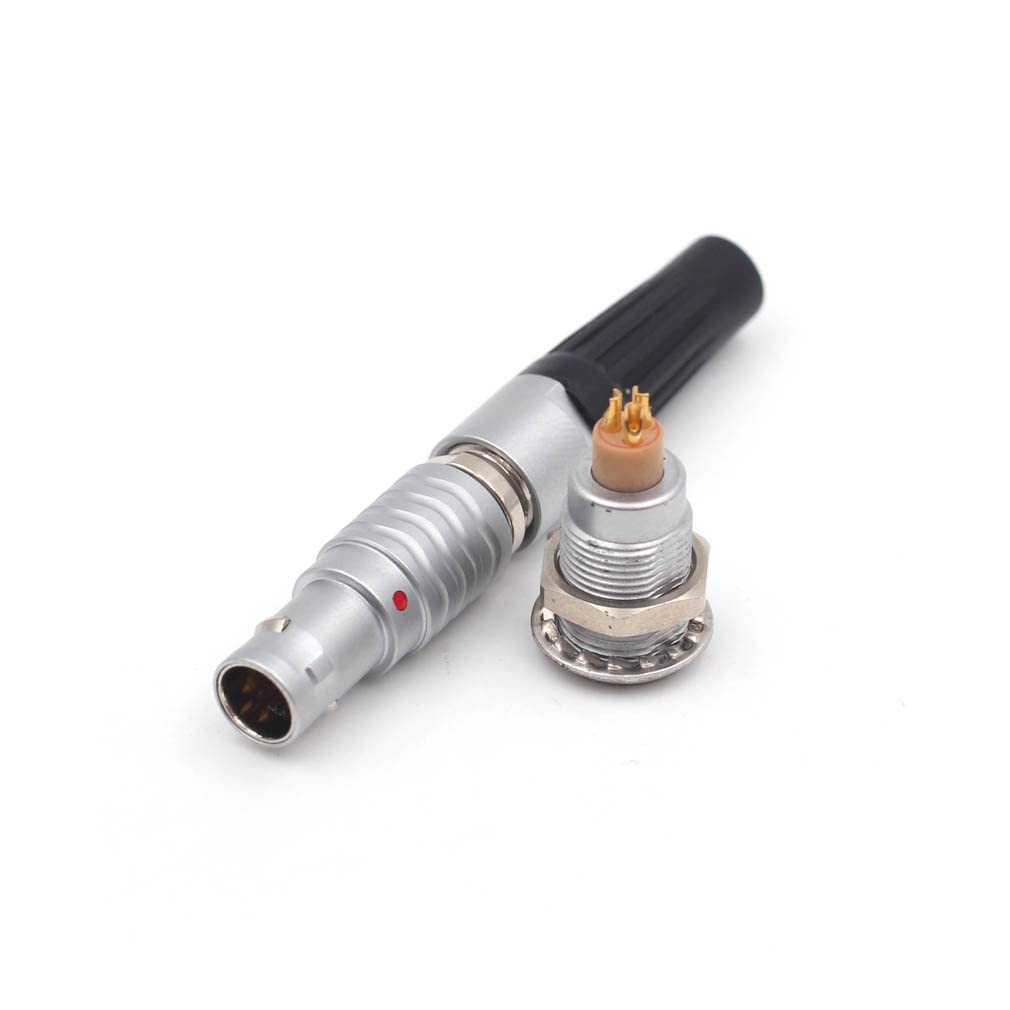

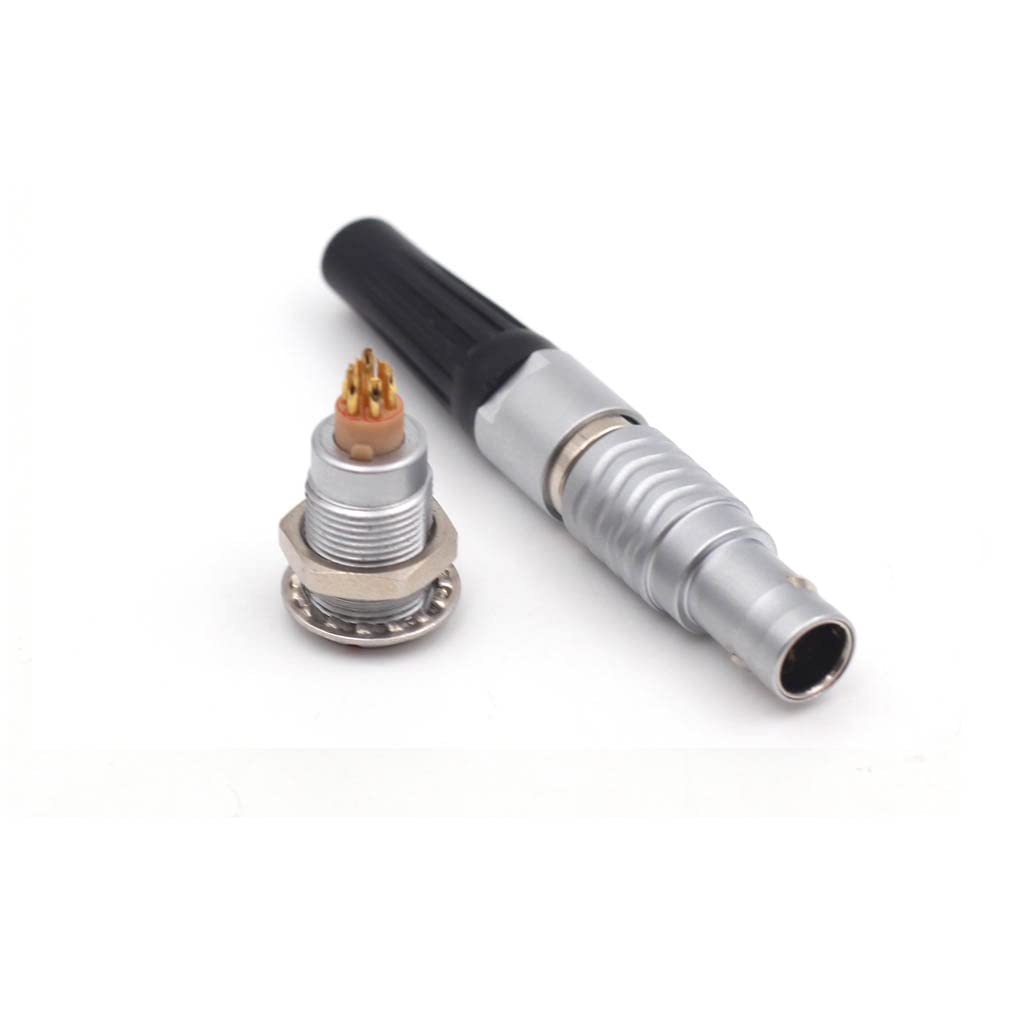

- Part number: FHG.0B.305.CLAD + EGG.0B.305, Rotatable 5 pin Aviation push-pull self-lock connector, Termination: Solder. Gender: male plug and female socket

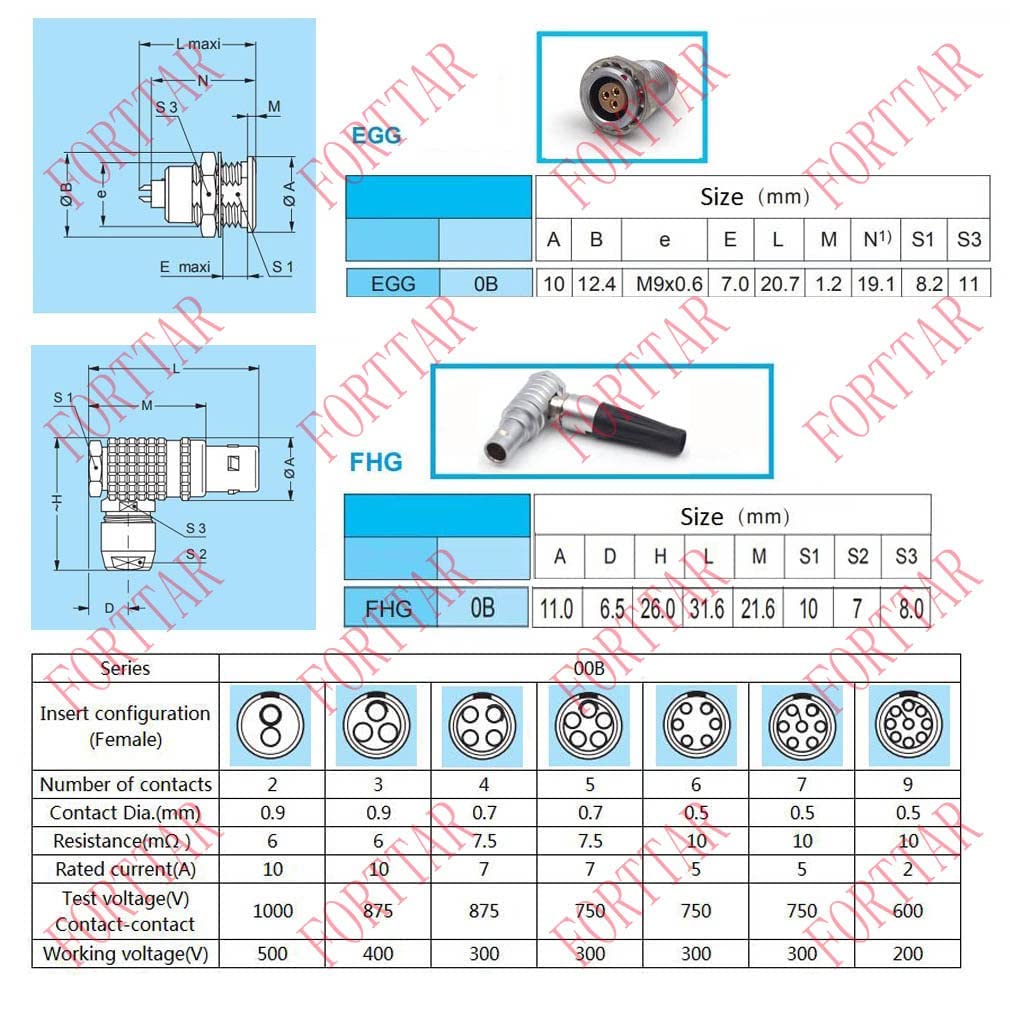

- Contact diameter: Φ0.7x5, Rated current: 7A, Rated voltage (AC.V.): 300V, PLEASE REFER TO 2ND PICTURE FOR SIZE AND PARAMETER DETAILS
- Wire specification: <0.785m㎡/18AWG, Cable size: default 5mm max(other cable size request please contact before order), Item net weight: 0.6 oz
- Anti-rotation feature,1 key (alpha=0), Security of the push-pull self-latching system.
- Stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.
| Item Weight | 0.5 ounces |
|---|---|
| Manufacturer | FORTTAR |
| Item model number | 0B |
| Is Discontinued By Manufacturer | No |
